Products

Download Product Catalog

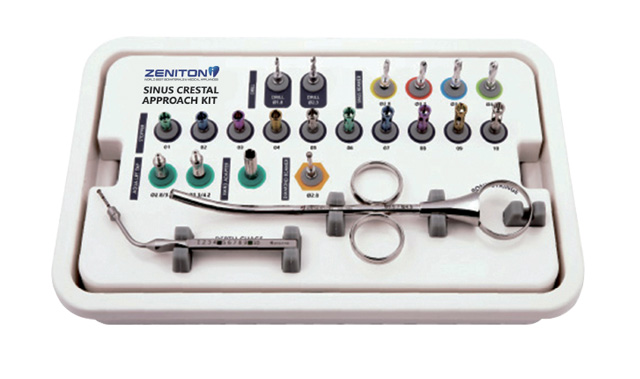

Introduction

  • Sinus Reamer with a precise & definite design
  • Simple way of Sinus Membrane Elevation System by water pressure
  • Made up with Tools for fast & safe Sinus Elevation Technique

Feature

  • A kit to elevate sinus membrane after approaching to the crestal area.
  • Possible of safe elevation, using the reamer & diamond bur
  • Possible of lifting sinus membrane up, using water pressure with Aqua Tip
crestal image

Direction for use

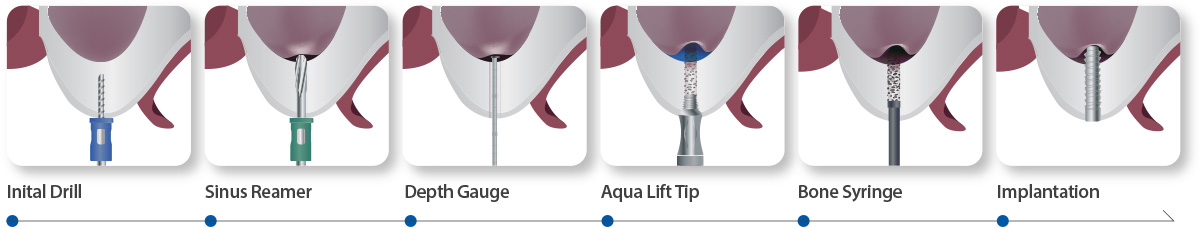

How to use

  • Carry out drilling to the end in line with the thickness of the maxillary bone after installing the Initial Drill (Ø1.8) to a stopper. [800 ~ 1,000 R.P.M.]
  • Carry out drilling to the end of the maxillary bone after installing the Initial Drill (Ø2.3) to a stopper. [800 ~ 1,000 R.P.M.]
  • Carry out reaming the cortical bone in the maxillary sinus using Sinus Reamer (Ø2.8). [800 ~ 1,000R.P.M.]
  • Carry out reaming the cortical bone in the maxillary sinus using Sinus Reamer (Ø3.3). [800 ~ 1,000 R.P.M.] Use Sinus Reamer (Ø2.8, Ø3.3, Ø3.8, Ø4.2) sequentially to carry out reaming the bone up to the size one size smaller than the implant size to be placed.
  • Use Diamond Bur for confirming whether the membrane is elevated finally or for the area where the elevation is difficult in terms of anatomy. [1,000 R.P.M. ~ 1,200 R.P.M.]
  • Lift sinus membrane up, using water pressure with Aqua Tip after checking if the drilling is done finally on the cortical bone in the maxillary sinus area.
  • After elevation by water pressure, with depth gauge check the drilling depth & membrane perforation, or bone grafting elevation.
  • Finally, use bone syringe for the bone filling in the elevated sinus area after elevating sinus membrane.

Instruments

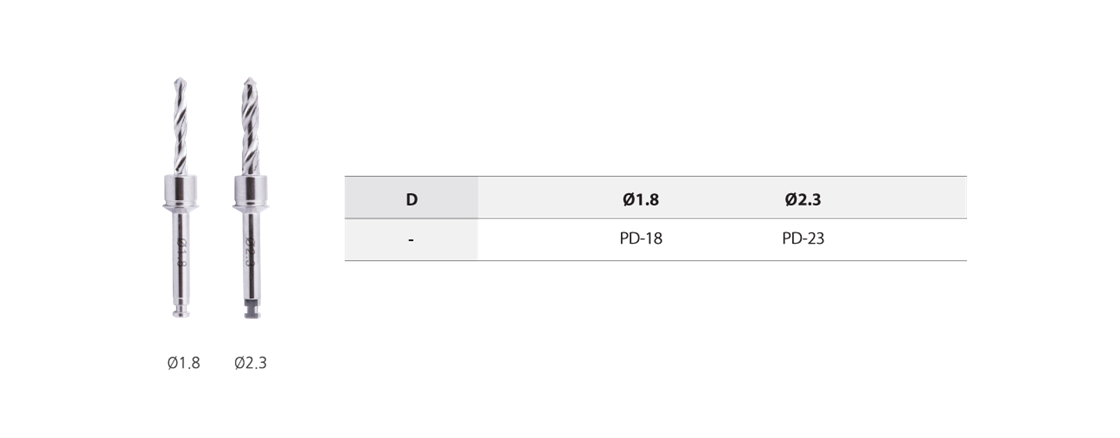

  • Connecting with stopper, use for drilling until the cortical bone nearby sinus area.
  • Available to connect with stopper
  • Same tool in the Sinus Combination Kit
  • Recommended R.P.M.: 800 ~ 1,000 R.P.M.

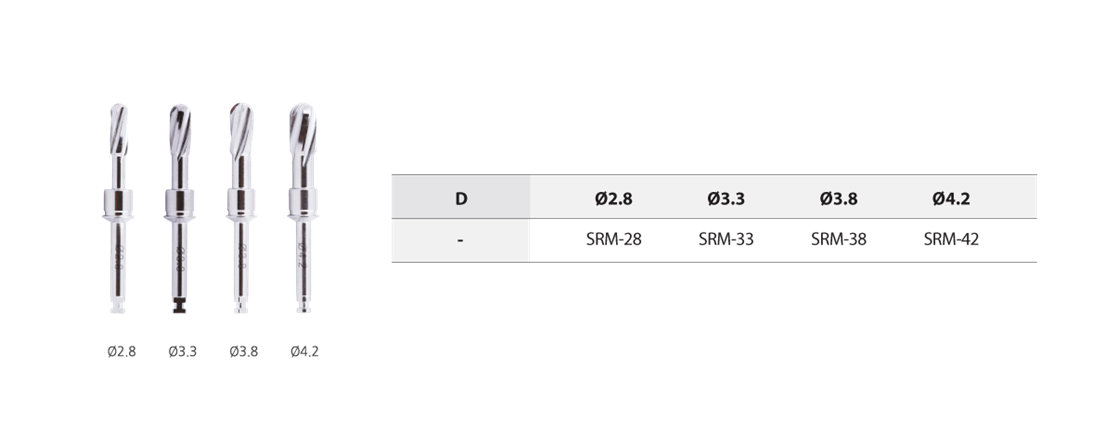

  • Connecting with stopper, use for drilling where the initial drill is perforated until the cortical bone
  • Even the reamer is reached to the sinus wall, the sinus wall isn't perforated.
  • Available to connect with stopper
  • Same tool in the Sinus Combination Kit, except for SRM-42 (Ø 4.2)
  • Same tool in the Simple Sinus Crestal Reamer Kit
  • Recommended R.P.M.: 800 ~ 1,000 R.P.M.

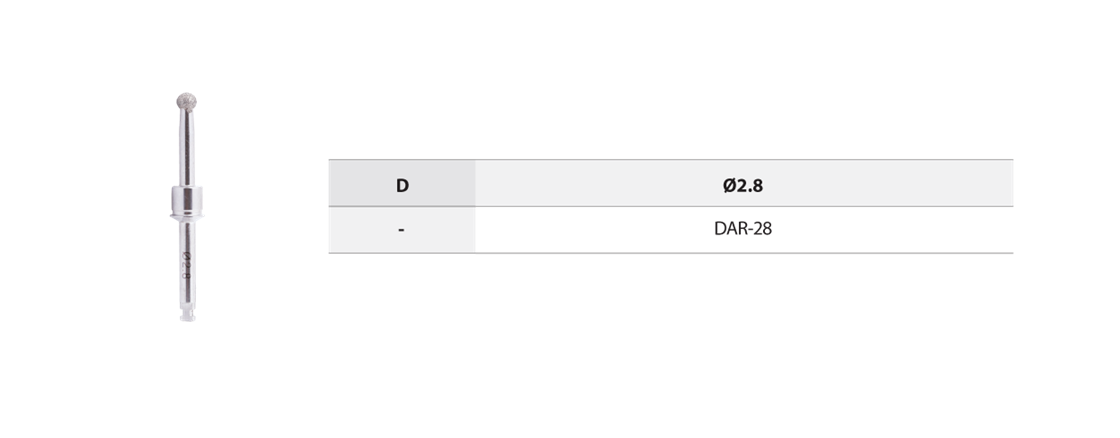

  • Even the bur is reached to the sinus wall, the sinus wall isn't perforated
  • May be used for the final drill on the surgery on confirming sinus membrane drilling
  • Available to connect with stopper
  • Same tool in the Sinus Combination Kit & Simple Sinus Crestal Reamer Kit
  • Recommended R.P.M.: 1,000 ~ 1,200 R.P.M.

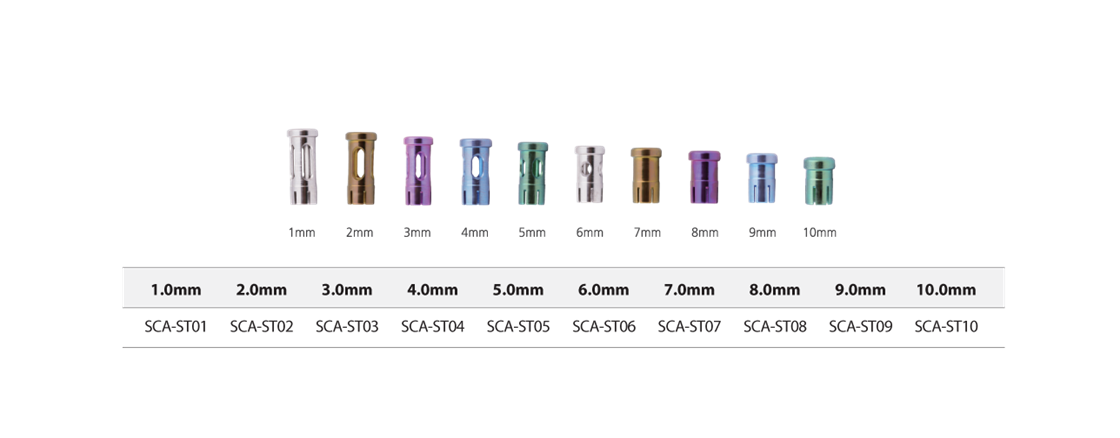

  • Possible of safe drilling after connecting with drills or reamers
  • Same tool in the Sinus Combination Kit, except for SCA-ST09 (Length : 9.0mm) & SCA-ST10 (Length : 10.0mm)
  • Same tool in the Simple Sinus Crestal Reamer Kit, only for the length from 1.0mm to 5.0mm.

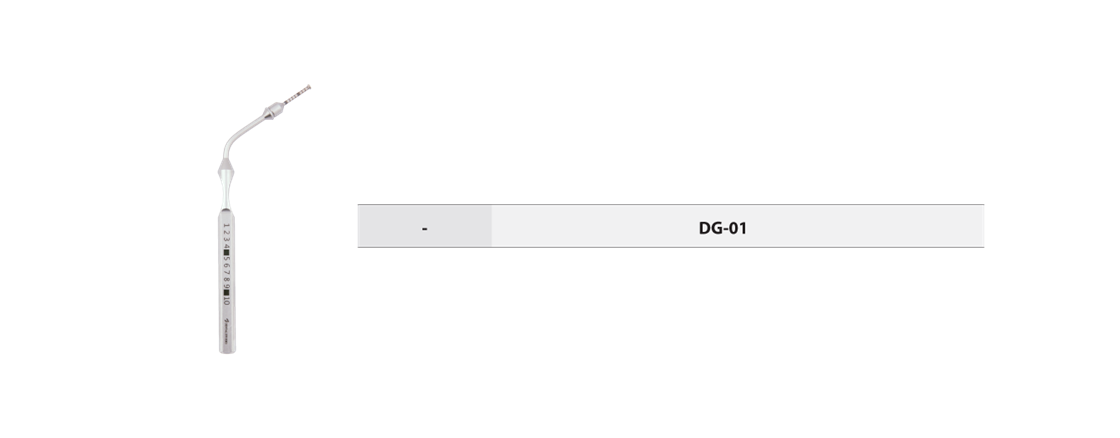

  • After drilling, use for the depth measurement or check whether the sinus wall is perforated
  • Available to connect with stopper
  • Same tool in the Sinus Combination Kit

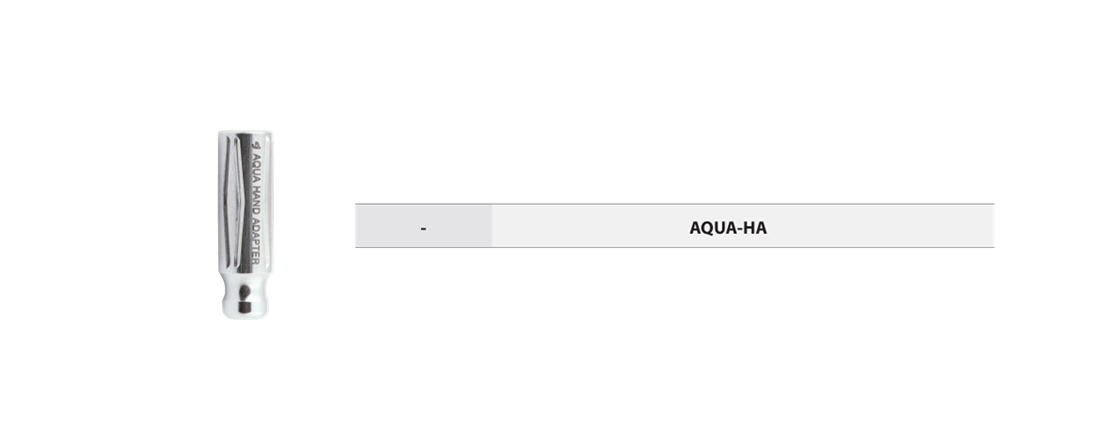

  • Used for fixing Aqua Tip to the cortical bone in the maxillary sinus with hands

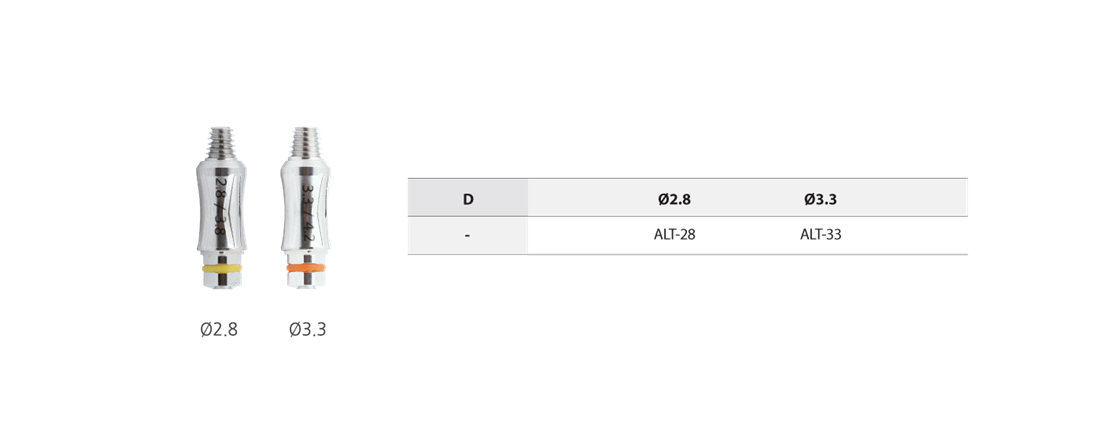

  • Use for elevating sinus wall by water pressure
  • After drilling by sinus crestal reamers, using water pressure elevate sinus wall safely
  • Aqua tip (Ø 2.8 Diameter) is used when the sinus crestal reamers (Ø 2.8 ~ Ø 3.8) are perforated.
  • Aqua tip (Ø 3.3 Diameter) is used when the sinus crestal reamers (Ø 3.3 ~ Ø 4.2) are perforated.
  • Same tool in the Sinus Combination Kit

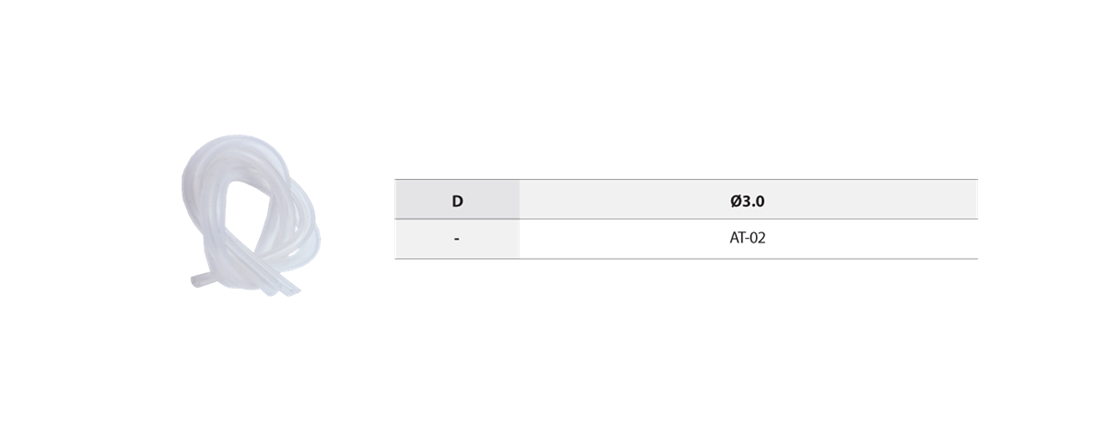

  • Connecting with Aqua Tip, insert water into silicone tube to make a pressure by water
  • Same tool in the Sinus Combination Kit

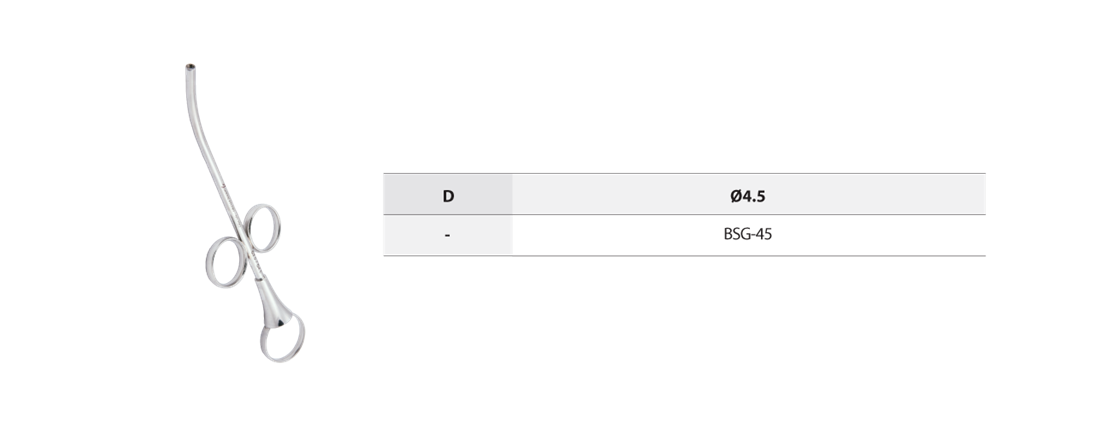

  • Use for putting the bone material into the maxillary bone
